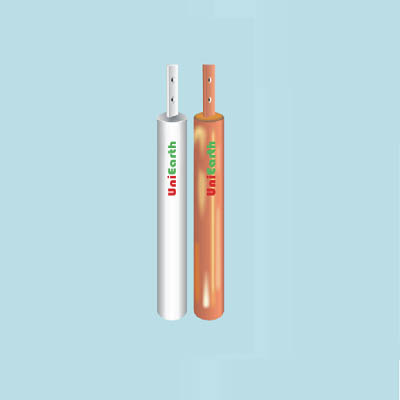

Pipe in Pipe Electrode
- It incorporates the use of two pipes of coaxial diameters joined together by inserting one into the other.
- GI Electrode is hot dip galvanized with a coating thickness of 86-100 microns.
- Copper Electrode is copper coated to a thickness of 100-250 microns.
- The space in between the primary and secondary electrodes is filled with UniEarth Electrofill a compound which aids in increasing the service life,electrical conductivity and current with-stand capacity of the earthing electrode.
Flat in Pipe Technology for Copper/GI Electrode can be Supplied on Requirement.
| Product | length (meter) | Inner pipe dia(mm) | Outer pipe dia(mm) |
|---|---|---|---|
| Pipe in Pipe Electrode | 2 & 3 | 25 | 50 |
| Pipe in Pipe Electrode | 2 & 3 | 40 | 76 |
